Using Super TT technology, when used with USB 3.0 pure active optical cables, the USB3.0 Cable data transmission distance can be extended from 3 meters (Common USB 3.0 cables can only extend to 3 meters) to 100 meters. It is also backward compatible with USB 2.0 devices.
Allows high-speed data transmission and extends the USB 3.0 range up to 100 meters when used with active optical cables.
Compatible with USB 2.0/1.1 devices, providing independent bandwidth speeds of 480Mbps per port for USB 2.0 connections.

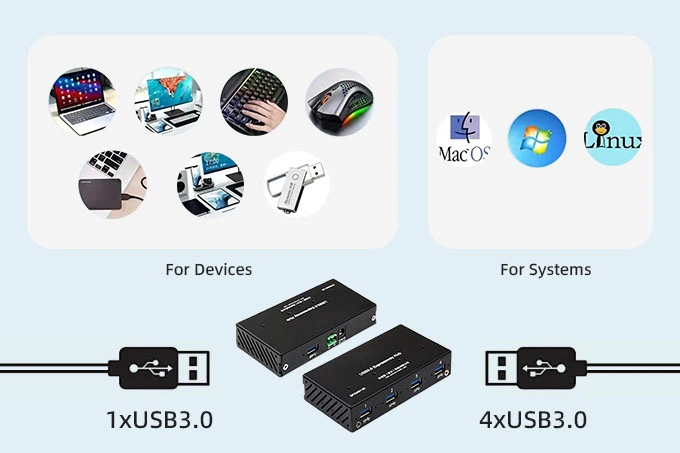

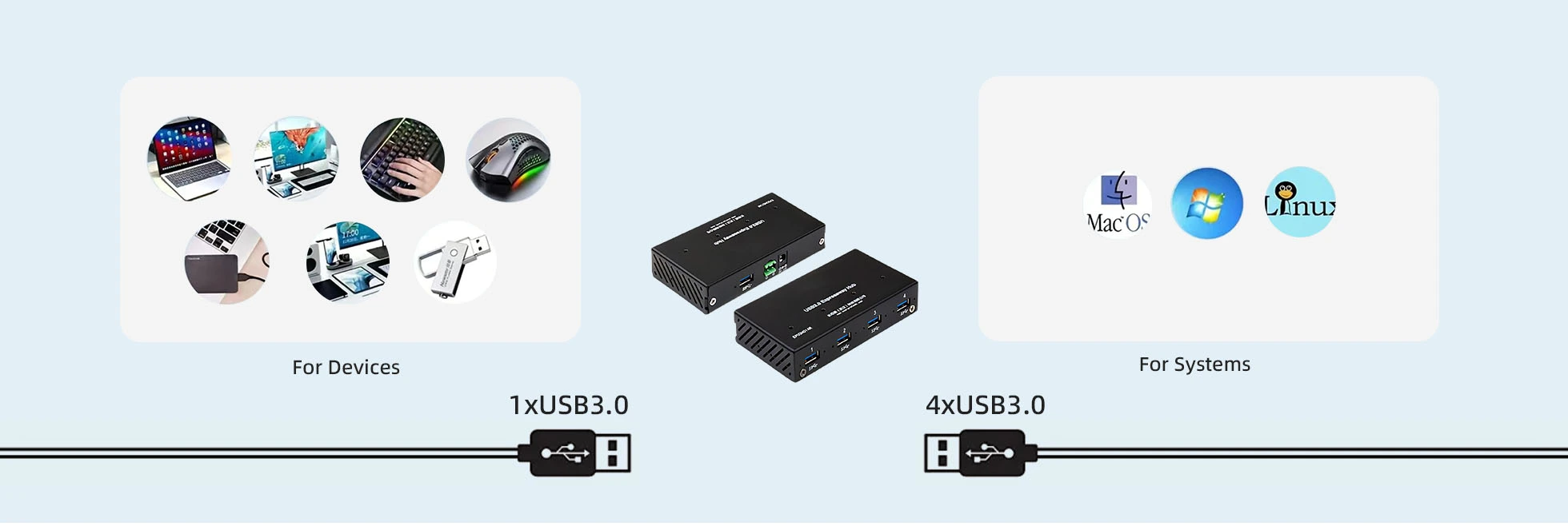

Easily expands a single USB 3.0 interface into four ports, allowing simultaneous connection of multiple devices.
Equipped with status indicators to clearly display system operation at a glance.
Supports and provides power to USB 3.0 pure active optical cables, ensuring stable and uninterrupted functionality.

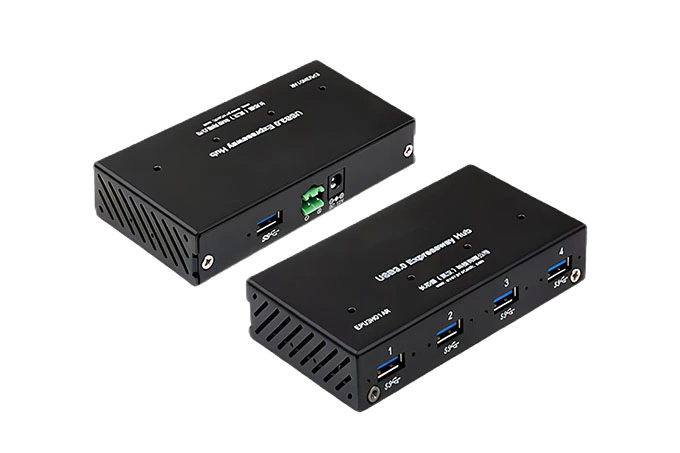

| Model No. | FBL3H01AR |
| Interface | USB3. 0 Upstream - one USB3. 0 Standard-A receptacle USB3. 0 Downstream - four USB3. 0 Standard-A receptacle |
| Maximum Bandwidth | 5Gbps |
| Dimension | 122 x 67.4 × 23 mm |
| DC Jack Interface Dimension | 5.5*2.1mm |
| DC Input | 12V 2A |
| Power Consumption | 2.5W |
Ideal for extending the data transmission distance of standard USB 3.0 cables.
When used with USB 3.0 active optical cables, it can extend the data transmission distance up to 100 meters, far exceeding the limitations of standard USB cables (maximum of 3 meters). It is also backward compatible with USB 2.0/1.1 devices, making it an ideal solution for long-distance data transmission in large-scale printing systems, factory automation, and remote device operation setups.
